Washing your records can be the only sensible way of removing fingerprints, dust and grease. A wet-washing machine with a vacuum cleaner makes the job easier and better.


Click for sharper picture

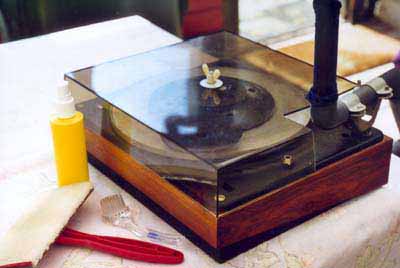

I chose a worn-out Beogram 1000 turntable as the platform for my washing machine, trying to keep the cost close to zero.

First I removed the motor and tone arm plus some other unnecessary components.


Click for sharper picture
A cast-iron spacer from a defective lamp and a slice of rubber from a scrapped grinding- machine was adapted and glued to the turntable platter (Araldit).

A long set screw of suitable dimension is used as the new center-spindle.

The record label will be supported from underneath by the slice of rubber. Only the label is supported. The grooves might be damaged if you do not modify the platter, rubbing the dust and grit into the grooves on the opposite side of the record you are cleaning.

A second slice of rubber and a wing-nut clamps the disc to the spacers, making the record easy to rotate and clean. The label is in this way a bit protected from the cleaning-fluid.

A L-shaped platic-tube system is clamped to the turntable instead of the tone arm.

"Velourcondom" protects the record

The tube-system is connected to an industrial-type 1500 W wet-vacuum cleaner. The L-shaped tube is closed in the record-end, except for a slit covered with a tube of velour-cloth, shaped much like a condom.

The slit of the tube must be parallel to the record-surface.

Click for sharper picture

Never use alcohol on shellac records

Cleaning-fluid is sprayed onto the record surface until the entire playable surface is wet. For vinyl records I use one part isopropyl and two parts of distilled water.

Never use alcohol (isopropyl or any other kind!) on the 78 rpm shellac records. It will completely destroy the record. Use only distilled water (and perhaps some dish washing agent).


Different brushes can help the cleaning proces.

Be careful not to rub too much, monitor the process while you turn the record manually.

Grit and dust can scratch the grooves more than your ears will like afterwards.

Click for sharper picture

Clean along the grooves. Try to determine the right compromise between cleaning and rubbing the record to death....

Click for sharper picture Click for sharper picture

When you have loosened the grit and dust, you suck the record clean with the vacuum-tube system by turning on the vacuum cleaner.

Dust, grease and grit are in this manner removed from the record surface, and you can now listen to a hopefully less noisy record.

Wet cleaning or wet playing can be the only way

The tube-system is coupled to an industrial wet-vacuum cleaner. You should NOT use a household-vacuum cleaner (fire hazard!).

Click for sharper picture
After a turn or two the record seems dry and clean, but revolve the record a couple of times more to be sure.

After cleaning the record can be put aside to make the label dry completely (a bit of fluid will find its way to the label if you are not extremely careful).



Dusty but otherwise undamaged records will be less noisy after this type of cleaning, and removing the dust will save the records from further detoriation.

After the cleaning the use of an antistatic "gun" is a good thing, and give the record a new inner-sleeve without pvc.

Greasy and somewhat damaged records will be saved from total destruction, but very dirty records with "burnt-in" fingerprints and battered by years of abuse must have special treatment beyond the scope of this description. Tea tree oil, though, seems to be able to revome e.g. tape-glue from vinyl-records, but be careful to remove the oil again immediately.

Mail me if you have some good ideas.

From "the good old days" in the seventies I know the method of "wet playing". I use it from time to time, playing with a rugged but full functional Shure stylus, "digging" the grit up from the grooves.
